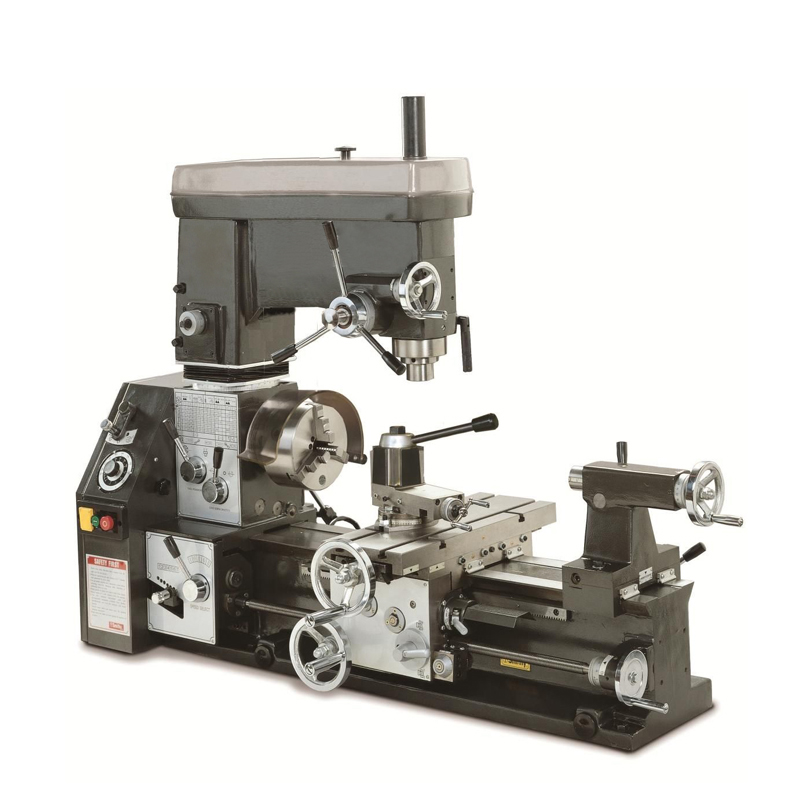

Wholesale Price China Cnc Lathe Tck66a - mill drill lathe machine G1324 G1340 – Hoton Detail:

INTRODUCTION:

1.Has the purposes of turning, drilling, milling, boring & thread-cutting
2.DC brushless motor, big torque at low speed, infinitely variable speed
3.Power-driven for table in milling
4.Cam clamping chuck
5.Lengthened table

Features:

1.Has the devices of safety interlock & an overload safety
2.Lengthened drilling/milling box, 360 degree rotation in vertical plane

SPECIFICATIONS	G1324		G1340
Swing diameter over bed	330mm	13"	330mm	13"
Swing diameter over table	190mm	7.5"	190mm	7.5"
Distance between centers	610mm	24"	1000mm	40"
Spindle bore	28mm	1.1"	28mm	1.1"
Spindle speed (infinitely)	50-3000r/min		50-3000r/min
Longitudinal stoke	510mm	20"	890mm	35"
Cross stoke	185mm	7.3"	185mm	7.3"
Small toolpost stroke	70mm	2.75"	70mm	2.75"
Metric pitch/grade	0.35-6.5mm /24		0.35-6.5mm /24
Inch pitch/grade	7-52T.P.I/21		7-52T.P.I/21
Longitudinal feed/grade	0.067-0.5mm/r/21		0.067-0.5mm/r/21
Cross feed/grade	0.021-0.157mm/r/21		0.021-0.157mm/r/21
Milling-drilling spindle taper	MT3	R8	MT3	R8
Milling-drilling shaft stroke	127mm	5"	127mm	5"
Milling-drilling box stroke	110mm	4.33"	110mm	4.33"
Table size	450x170mm	17.7"x6.7"	450x170mm	17.7"x6.7"
Drilling dia.	24mm	0.95"	24mm	0.95"
Power of motor	1.1KW		1.1KW
N.W./G.W.	300/350kg		300/380kg
Overall Dimensions of machine(LWH)	1325x585x1030mm		1705x585x1030mm
Case dimensions of machine(LWH)	1260x570x1100mm		1640x570x1100mm
Case dimensions of stand(LWH)	left:760x450x410,right:760x 450x350mm		left:760x450x410,right:760x 450x350mm

Product detail pictures:
