Wholesale Discount Metal Craft Pipe Bender - Valve Seat Boring Machine – TQZ8560 TQZ8560A TQZ8560B TQZ85100 – Hoton Detail:

1:FEATURES OF PRODUCTS

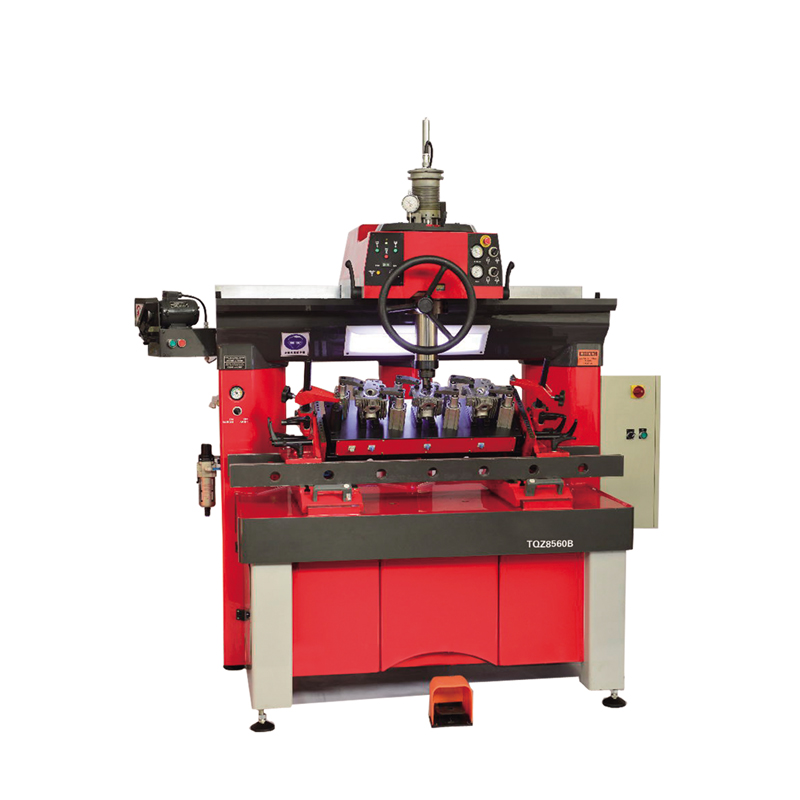

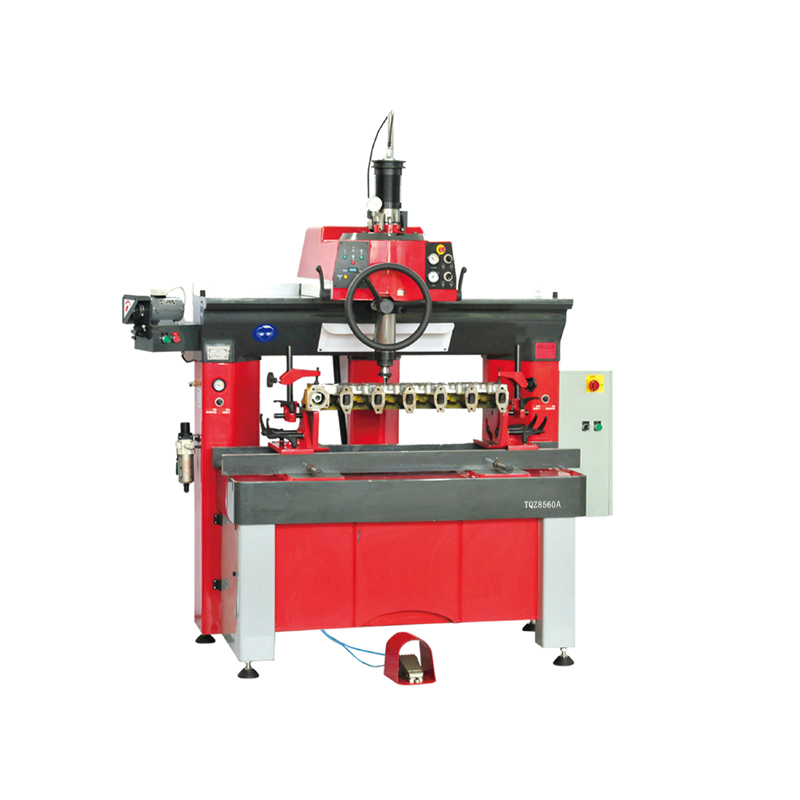

TQZT8560 is suitable for repairing the valve seat of automobiles, motorcycle, tractor and

Other engines. It also can be used to drilling and boring etc. The machine features are

air-floating, vacuum clamping, high positing precision, easy operation.

The machine is set with grinder for cutter and vacuum check device for work piece.

We have the ability to design and produce special pilot and cutter according to

customers' request.

Model	TQZ8560	TQZ8560A	TQZ8560B	TQZ85100
Boring dia.	Φ56mm	Φ14-Φ60mm	Φ14-Φ60mm	Φ20-Φ100mm
Max.size of cylinder head for cutting	1200×500×300mm	1200×500×300mm	1200×500×300mm	1500×550×350mm
Power of spindle motor	0.55kw	1.2kw	1.2kw	1.2kw
Spindle speed(infinitely variable speed)	0-500rpm	0-1000rpm	0-1000rpm	0-1000rpm
Spindle swing angle	5°	5°	5°	5°
Spindle stroke	200mm	200mm	200mm	200mm
Spindle move(cross×longitudinal)	950×35mm	950×35mm	950×35mm	1200×35mm
Distance of worktable longitudinal move	----		150mm	150mm
Fixture rotary angle	+-15°	+45°~+-15°	+45°~+-15°	+45°~+-15°
Power supply	220V/50HZ	220V/50HZ	220V/50HZ	220V/50HZ
Air supply pressure	0.6Mpa	0.7Mpa	0.7Mpa	0.7Mpa
Air supply flow Mandrel sleeve to table	300L/min473mm	300L/min473mm	300L/min473mm	300L/min473mm
Machine weight(N/G)	1050/1250kg	1100/1300kg	1150/1350kg	1400/1800kg
Over dimensions(L×W×H)mm	1480×1050×1970	1910×1050×1970	1910×1050×1970	2110×1100×2070
Packing size(L×W×H)mmweight	1940×1350×22201050/1250	2230×1350×2270	2230×1350×2270	2430×1400×2300
