Reasonable price for Cnc Slotter Machine - Air Hammer C41-40 – Hoton Detail:

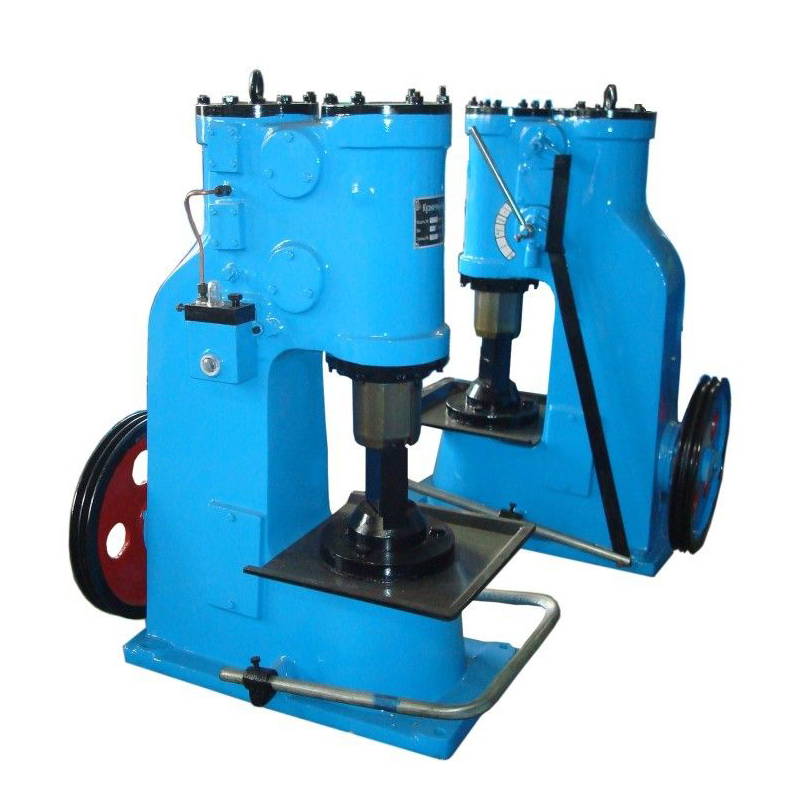

AIR HAMMER PRODUCT FEATURES:

1. The air hammer is used for forging and shaping work pieces

2.The air hammer is easy to operate through controlling the travel of top swage by a foot rest lever.

3. It’s models range from 16KG to 150KG

4. It is widely used for general forging works, such as drawing out, upsetting,punching, chiseling, forging, welding, bending and twisting

5.It is also used for forging in bolster dies.

SPECIFICATIONS:

MODEL	C41-16KG	C41-20KG	C41-25KG	C41-40KG	C41-75KG
Beat weight(kg)	16	20	25	40	75
Beat capacity(kgf-m)	180	220	270	530	900
Height of working(mm)	180	200	240	245	300
Beat times/minute	258	270	250	245	210
Length of rectangular(mm)	20x20	30X30	40X40	52X52	65x65
Length of circular(mm)	¢20	¢35	¢ 45	¢ 68	¢ 85
Power (kW)	1.5	2.2	2.2	4.5	7
Speed of motor (rpm)	1440	1440	1440	1440	1440
Weight of anvil block(kg)	-	200	250	400	850
Packing Size(cm)	58.5x39x95	67X37X105	80X41X121	108X60X139	160x95x195
N.W./G.W.(kg)	240/265	500/560	760/860	1350/1450	2800/2900
