OEM Factory for Universal Millling Drilling Machine - Rotary Table TSL200 TSL250 – Hoton Detail:

TSL SERIES ROTARY TABLE FEATURES:

1.TSL vertical & horizontal rotary table is one of the main accessory of milling machine, it is used for index boring,

2.milling, circle cutting, spot facing and boring hole etc on milling machine.

2.Rotary table in vertical with tailstock working together, it can used on complex work for circle index boring and milling.

3.As clients' special requirements the TSL with left handwheel can be offered.

SPECIFICATIONS:

MODELS	TSL100	TSL160	TSL200	TSL250	TSL320		TSL400
Diameter of table mm	100	160	200	250	320		400
Morse taper of center hole	MT2		MT3			MT4
Dia.of center hole	ø20X8	ø25X6	ø30X6			ø40X10
Center height for Vert. Mounting mm	70	125	150	170	210	260
Width of T-slot mm	6	10	12			14
Adjacent angle of T-slot	90°				60°
Width of locating key mm	10	12	14			18
Transmission radio of worm gear	1:72	1:90
Readout of handwheel	2'	1'
Min.value of vernier	10"
Indexing accuracy	120"	80"	60"
Max.workload (Hor.) kg	20	100	150	200	250	300
Max.workload (Vert.) kg	10	50	75	100	125	150
N.W. kg	7	23	31.5	46	77	150
G.W. kg	8	30	42	57	92	175
Case dimensions mm	245X165X112	432X432X220	450X440X235	510X460X240	590X580X250	750X684X286

MODEL	TSL150(HV-6)	TSL200(HV-8)	TSL250(HV-10)	TSL300(HV-12)	TSL350(HV-14)	TSL400(HV-16)
A	200	265	325	388	450	525
B	160	220	280	330	390	450
C	100	135	165	195	230	260
D	φ150	Φ200	Φ250	Φ300	Φ350	Φ400
E	16					18
G	17
H	83	105	115	135	138	150
J	10	10	15
M	MT2	MT3	MT4
N	78	98	113	133	128	145
Net weight kg	14	28	43	71	83	93
Gross weight kg	15	30	45	73	85	95
Packing size	27x24x13	38x30x16	45x35x18	55x45x19	55x48x19	55x50x20

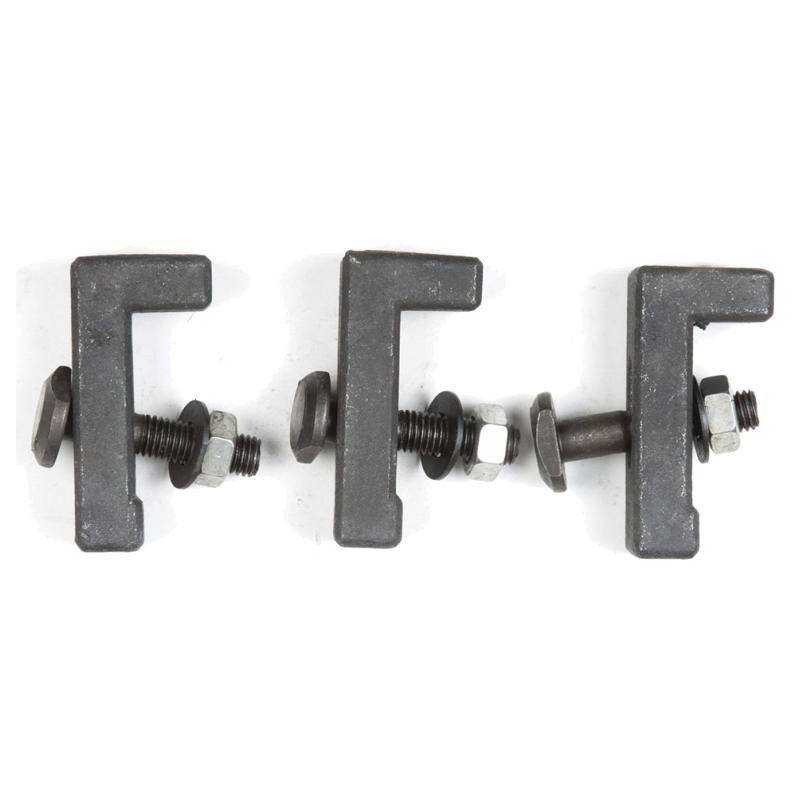

Product detail pictures:
