OEM Customized Surface Grinder - Lathe Chuck K72 SERIES – Hoton Detail:

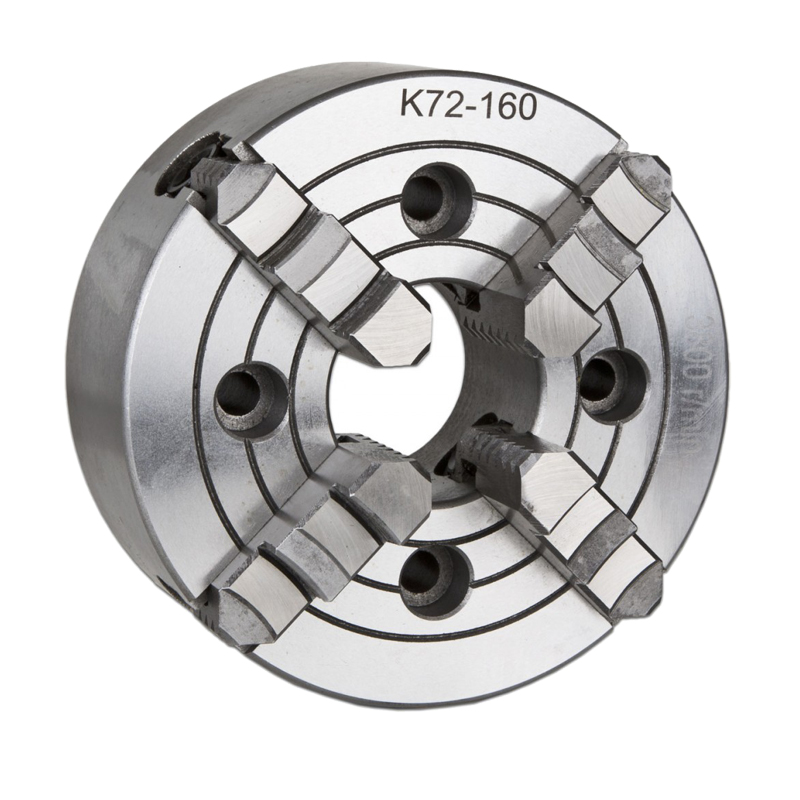

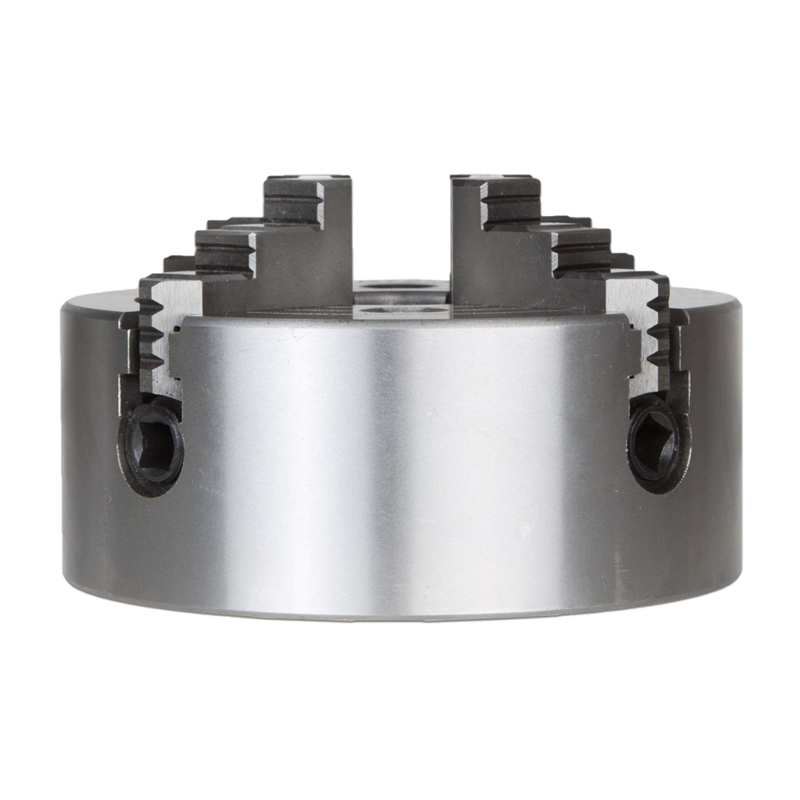

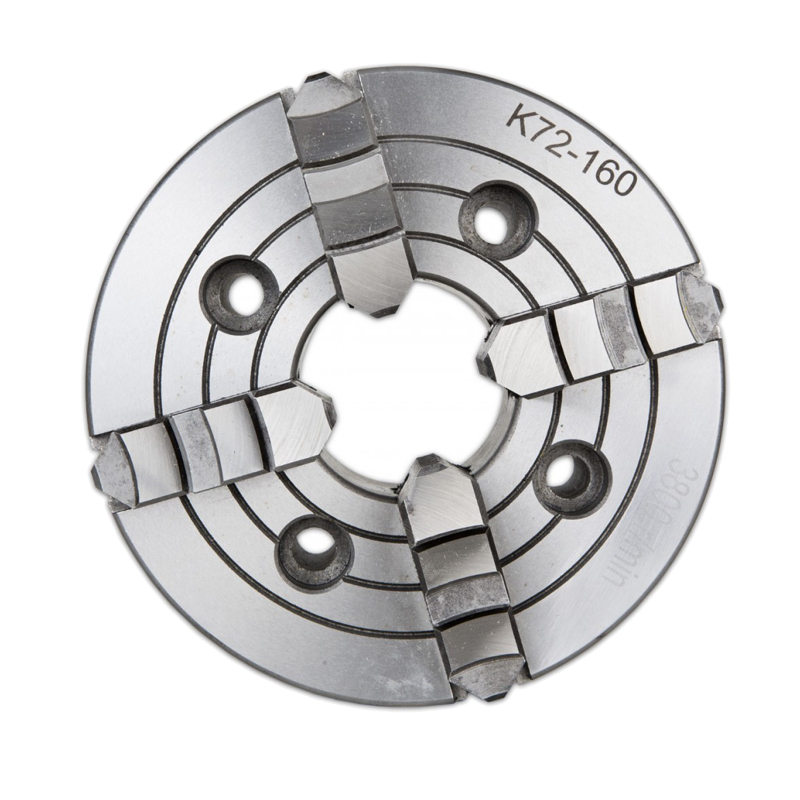

K72 SERIES FOUR-JAW INDEPENDENT CHUCK

K72 series Four-jaw independent chuck adopts short cylinder and short circular cone shape,Short circular cone shape can be subdivided into two types according to the way of joining with the rod of machine tool:Type A(joined with screw),Type C(bolt locking joint),Type D(pull rod,cam locking joint).

SPECIFICATIONS:

Model 　Size D	D1	D2	D3	H	H1	h	Z-d
K72160	65	95	45	93	65	5	4-M10
K72200	75	95	56	107	75	6	4-M10
K72250	110	130	75	120	80	6	4-M12
K72315 K72320	140	165	95	138	90	6	4-M16
K72350	130	168	95	138	90	6	4-M16
K72350	140	168	95	138	90	6	4-M16
K72400	160	185	125	143	95	8	4-M16
K72500	200	236	160	160	105	8	4-M20
K72520	260	300	205	160	105	10	4-M16
K72630	220	258	180	180	118	10	4-M20
K72800	250	300	210	202	132	12	8-M20

K72 series Four-jaw independent chuck A type

Model Size D	short-taper No	D1	D2	D3	H	H1	h	h1	h2	d1	Z-d
K72160	4	63.513	82.6	45	93	65	13	10	6.5	14.7	4-M10
K72200				56	107	75
K72250	4	63.513	82.6	61	120	80	13	10	6.5	14.7	4-M10
K72315	4	63.513	82.6	61	138	90	-	10	6.5	14.7	4-M10
K72320
K72350
K72200	6	106.375	133.4	56	107	75	16	13	6.5	19.5	4-M12
K72250	6	106.375	133.4	75	120	80	16	13	6.5	19.5	4-M12
K72315	6	106.375	133.4	95	138	90	16	13	6.5	19.5	4-M12
K72320
K72350
K72400	6	106.375	133.4	95	143	95	16	13	6.5	19.5	4-M12
K72500	6	106.375	133.4	103	160	105	-	13	6.5	19.5	4-M12
K72520	8	139.719	171.4	75	120	80	18	14	8	24.2	4-M16
K72315	8	139.719	171.4	95	138	90	18	14	8	24.2	4-M16
K72320
K72350
K72400	8	139.719	171.4	125	143	95	18	14	8	24.2	4-M16
K72500	8	139.719	171.4	136	160	105	-	14	8	24.2	4-M16
K72315/K72320	11	196.869	235	95	138	90	20	16	10	29.4	4-M20
K72350/K72400				125	143	95
K72500/K72520	11	196.869	235	160	160	105	20	16	10	29.4	4-M20
K72630				180	180	115
K72500	15	285.775	330.2	160	160	105	21	16	10	35.7	4-M22
K72630				180	180	115

Product detail pictures:
