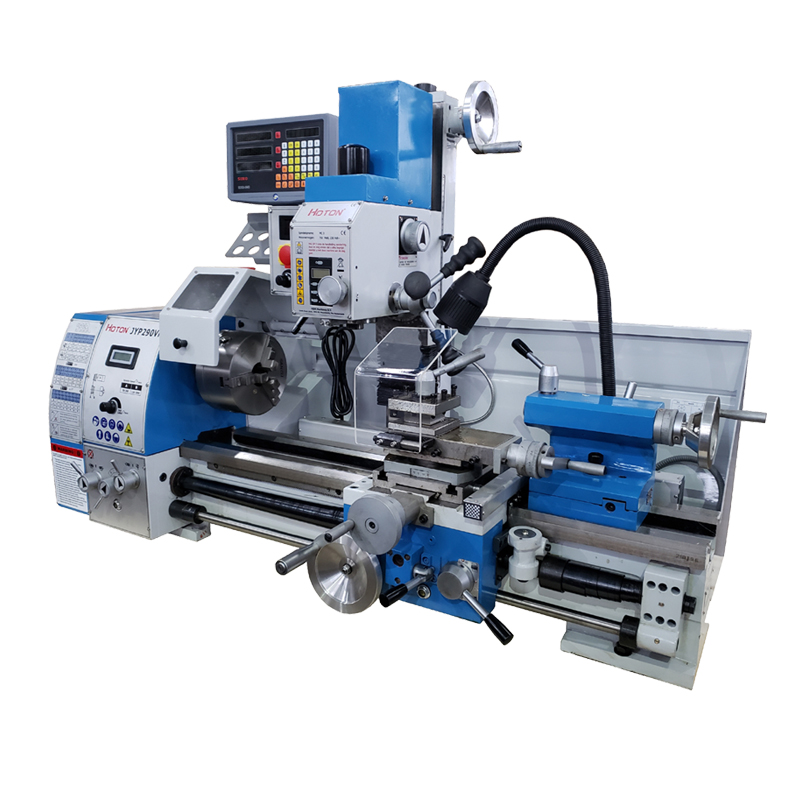

High-Quality Combo Lathe/Mill JYP290VF

Good quality Flat Bed Cnc Lathe - Combo Lathe/Mill JYP290VF – Hoton

Short Description:

MULTI USE LATHE FEATURES: Frequency inverter 38mm spindle bore V-way bed is hardened and precision ground Independent leadscrew and feedshaft. Power cross feed function. Automatic feed and threading are fully interlocked MT5 spindle hole gets greater capacity with Φ 160 mm three-jaw chuck T-slotted cross slide Top design of gearbox gets more function Tailstock may be offset for turning tapers Geared mill head gets more torque. Mill head can be tilted ± 90° . Tolerance test certificate, test f...

Send email to us

Product Detail

Product Tags

Feedback (2)

As for competitive selling prices, we believe that you will be searching far and wide for anything that can beat us. We will state with absolute certainty that for such excellent at such charges we are the lowest around for Square Column Drilling Machine , Milling Machine , Flat Bed Cnc Lathe , Teamwork is encouraged at all levels with regular campaigns. Our research group experiments on various developments during the industry for improvement within the solutions.

Good quality Flat Bed Cnc Lathe - Combo Lathe/Mill JYP290VF – Hoton Detail:

MULTI USE LATHE FEATURES:

Frequency inverter
38mm spindle bore
V-way bed is hardened and precision ground
Independent leadscrew and feedshaft.
Power cross feed function.
Automatic feed and threading are fully interlocked
MT5 spindle hole gets greater capacity with Φ 160 mm three-jaw chuck
T-slotted cross slide
Top design of gearbox gets more function
Tailstock may be offset for turning tapers
Geared mill head gets more torque.
Mill head can be tilted ± 90° .
Tolerance test certificate, test flow chart included.

SPECIFICATIONS:

MODEL	JYP290V-F
Distance between centers	700 mm
Swing over bed	290 mm
Swing over cross slide	165 mm
Width of bed	180 mm
Taper of spindle bore	MT5
Spindle bore	38 mm
Number of spindle speeds	Variable
Range of spindle speeds	50-1800 rpm
Range of longitudinal feeds	0.07-040 mm/r
Range of inch threads	8-56 T.P.I
Range of metric threads	0.2-3.5 mm
Top slide travel	50 mm
Cross slide travel	165 mm
Tailstock quill travel	80 mm
Taper of tailstock quill	MT3
Motor	1.1 kw
Mill & drill
Taper of spindle bore	MT3
Spindle stroke	50mm
Spindle speed	50-2250 rpm
Max. distance spindle to table	375 mm
Max. distance spindle to column	185 mm
Motor	600W
Packing size	1400x780x1070 mm
Net weight	290/300 kg

STANDARD ACCESSORIES :

OPTIONAL ACCESSORIES

3-jaw chuckDead centersReductions sleeve

Change gears

Oil gun

Some tools

Steady restFollow restFace plate

4 jaw chuck

Live center

Stand

Lathe tools

Thread chasing dial

Lead screw cover

Tool post cover

Disc milling cutter

Mill chuck

Side brake

Product detail pictures:
