High-Quality Bench Lathe JYP290VF - Hoton CJM320B Manufacturer

Good quality Bench Lathe Jyp290vf - Bench Lathe-CJM320B – Hoton

Short Description:

METAL SMALL LATHE MACHINE FEATURES: 1.The machine adopts full gear drive, double rod operation, no need to replace the hanging wheel can meet the needs of a variety of different kinds of knife and a variety of pitch. 2.Vertical and horizontal feed adopts interlocking mechanism, safety is good. 3.The machine tool uses two mountains and two moment rail, high frequency quenching, high accuracy, high rigidity, good abrasion resistance. SPECIFICATIONS: MODEL CJM320B Max swing bed 320mm...

Send email to us

Product Detail

Product Tags

Feedback (2)

continue on to further improve, to make sure product top quality in line with market and consumer standard requirements. Our firm has a excellent assurance program have already been established for Turning Lathe , Band Saw Machine , Cnc Lathe Cak6140 , The continual availability of high grade products in combination with our excellent pre- and after-sales service ensures strong competitiveness in an increasingly globalized market.

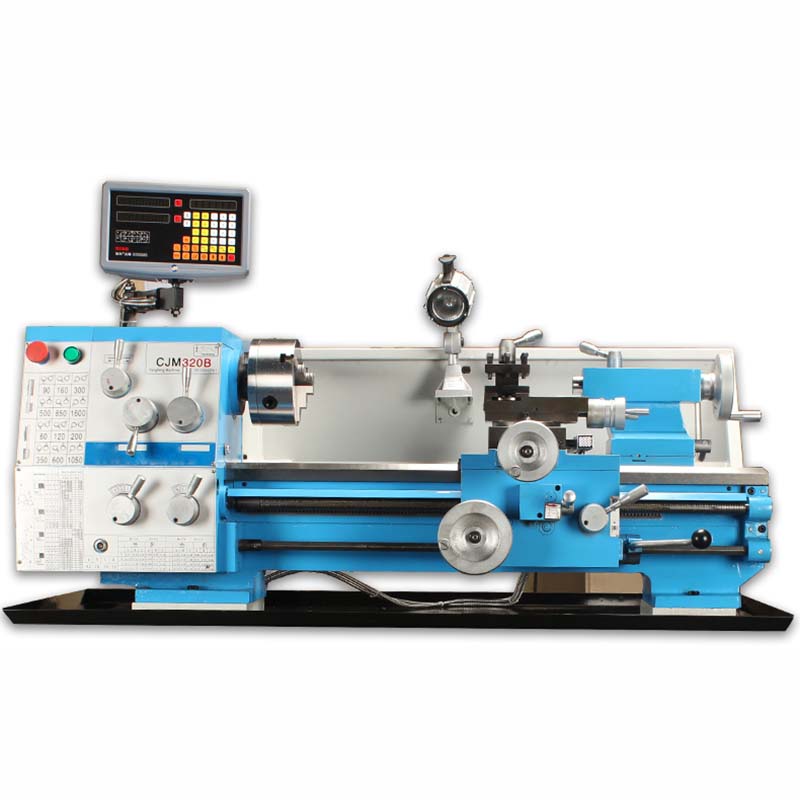

Good quality Bench Lathe Jyp290vf - Bench Lathe-CJM320B – Hoton Detail:

METAL SMALL LATHE MACHINE FEATURES:
1.The machine adopts full gear drive, double rod operation, no need to replace the hanging wheel can meet the needs of a variety of different kinds of knife and a variety of pitch.
2.Vertical and horizontal feed adopts interlocking mechanism, safety is good.
3.The machine tool uses two mountains and two moment rail, high frequency quenching, high accuracy, high rigidity, good abrasion resistance.
SPECIFICATIONS:

MODEL	CJM320B
Max swing bed	320mm
Max swing slide over bed	200mm
Spindle bore	38mm
Spindle taper	MT5
Spindle speed	12; 60-1600rpm
Cross feed	0.045-0.6mm/r
Longitudinal feed	0.1-1.4mm/r
Max range of tailstock quill	80mm
Taper of tailstocks quill	Mt3
motor	950W
GW/NW	430kg/350kg
Package size	1470x770x1470mm
