Premium Garage Equipment for Efficient Vehicle Maintenance and Repair

DA-8700 Cart-type optical disc player

Short Description:

The 8700 series is an on-vehicle optical disc machine that can process brake discs directly on the vehicle without being limited by the position of the horns of the brake discs of any vehicle model. It saves time, improves work efficiency, and avoids tolerances caused by secondary assembly of brake discs and bearings. It is both convenient and practical! Common problems encountered when braking...
DA-5288 Upright Brake Disc Disc Machine

Short Description:

The 5288 series is a luxury tabletop disc player that can disassemble brake discs. It is easy to operate, saves time, improves work efficiency, and makes the brake disc repair more precise! Common problems encountered during braking: Brake pedal vibration - usually when a new car has traveled tens of thousands of kilometers or a certain mileage after replacing a new brake disc, the brake cylind...
DA-520A Upright Brake Disc Disc Machine

Short Description:

520A series is a luxury tabletop disc machine that can disassemble the brake disc. It is easy to operate, saves time, improves work efficiency, and makes the brake disc repair more accurate! Common problems encountered when braking: Brake pedal vibration - usually in a new car that has traveled tens of thousands of kilometers or a certain mileage after replacing a new brake disc, the brake cyli...
DL-618 Brake Disc Cutting Machine

Short Description:

DL-618 brake disc cutting machine adopts German QPQ production technology and strengthens the wear resistance and quenching of the material, and nitrogen dipping and hardening heat treatment. This utility model is a two-in-one brake disc correction grinding machine that can be used for carbon fiber brake discs and FCD cast iron brake discs, etc. At the same time, it can ensure a good brake disc...
Valve Seat Boring Machine LD-2000

Short Description:

Model LC-2000 Boring capacity 18-65mm Processing radius 1000mm Max. speed 375rpm Rated power 600w Rated voltage 220V-50HZ
Boring Cylinder Machine T8014A T8016A

Short Description:

Model T8014A T8016A Boring diameter Φ65-Φ140mm Φ80-Φ165mm Max.boring depth 300mm 400mm Spindle speed 250,380 r/min 200,300 r/min Spindle feed 0.11 mm/r 0.12 mm/r Spindle rapid reset 636 mm/min 780 mm/min Voltage 220V / 380V 220V / 380V Motor Output 0.25/0.37kw 0.25/0.37kw Motor speed 1440 r/min 1440 r/min Overall dimens...
Cylinder Boring MachineT808A

Short Description:

Model T808A Boring diameter 50– 85 mm Max. boring depth 170 mm Spindle speed 394 r/min Spindle feed 0.1 Spindle quick reset Manual Motor power 0.25kw Motor speed 1440r/min Overall dimensions 350x 272x725mm Machine weight 80 kg
Vertical Air-floating Fine Boring Machine TB8016

Short Description:

Model TB8016 Boring diameter 39 – 160 mm Max boring depth 320 mm Boring head travel Longitudinal 1000 mm Transversal 45 mm Spindle speed (4 steps) 125, 185, 250, 370 r/min Spindle feed 0.09 mm/s Spindle quick reset 430, 640 mm/s Pneumatic pressure 0.6 < P < 1 Motor output 0.85 / 1.1 Kw V-block fixture patented system 30° 45° V-block fixture patented system (Optio...
Cylinder Honing Machine 3MB9808

Short Description:

Model 3MB9808 Max. diameter of hole honed 25-82mm Max depth of hole honed 200mm Spindle speed 200; 280rpm Stroke 19;27 s/min Power of main motor 0.55kw Power of cooling pump motor 0.09kw Machine working inside cavity dimensions 600x380mm Overall dimensions mm 600x850x195 Machine weight 500kg
SHM-100 Cylinder Honing Machine

Short Description:

Model SHM100 Max. Honing Diameter 100mm Min. Honing Diameter 36mm Max. Spindle stroke 185mm Distance between upright and spindle axis 130mm Min. distance between fastening brackets and bench 170mm Max. distance between fastening brackets and bench 220mm Spindle speed 90/190rpm Main Motor power 0.3/0.15kw Coolant system motor power 0.09kw
SBM-100 Cylinder Boring Machine

Short Description:

Model SBM100 Max. Boring Diameter 100mm Min. Boring Diameter 36mm Max. Spindle stroke 220mm Distance between upright and spindle axis 130mm Min. distance between fastening brackets and bench 170mm Max. distance between fastening brackets and bench 220mm Spindle speed 200rpm Spindle feed 0.76mm/rev Motor power 0.37/0.25kw
CNC Honing Machine VHM170

Short Description:

Model VHM170 Honing hole diameter 38-170mm Max length /depth of honing hole 300mm Workpiece size 1168*558*673mm Workpiece weight 680 kg Spindle motor 2.2kw Spindle speed 90-350rpm variable speed Stroke motor 0.75kw Stroke rate 40-80rpm variable speed Stroke length range 0-240mm Cooling pump motor 0.12kw Coolant capacity 210 dm3 Machine weight 860kgs Packing size 19...

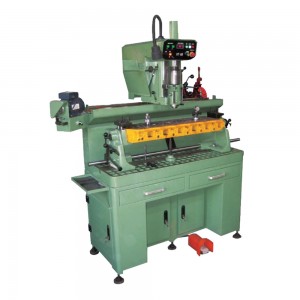

Valve Guide and Valve Seat Renewing Machine VSB-60

Short Description:

Model VSB-60 Working Table Dimensions (L * W) 1245 * 410 mm Fixture Body Dimensions (L * W * H) 1245 * 232 * 228 mm Max. Length of Cylinder Head Clamped 1220 mm Max. Width of Cylinder Head Clamped 400 mm Max. Travel of Machine Spindle 175 mm Swing Angle of Spindle -12° ~ 12° Rotating Angle of Cylinder Head Fixture 0 ~ 360° Conical Hole on Spi...
Cylinder Boring Machine 3MB9817J

Short Description:

Model 3MB9817/3MB9817J Honing hole diameter 40-170mm Maximum depth of honing hole 320mm Rotation of main shaft 120,160,225,290r/min Stroke of main shaft 35、44、60s/min Horizontal motion distance of main shaft 900mm Lifting height of machine table 150mm Power of main motor 1.5kw Voltage 3～380V Frequency 50Hz Power of cooling pump 0.125kw Voltage 3～380V Frequency 50H...
Cylinder Boring Machine 3MB9817

Short Description:

Model 3MB9817/3MB9817J Honing hole diameter 40-170mm Maximum depth of honing hole 320mm Rotation of main shaft 120,160,225,290r/min Stroke of main shaft 35、44、60s/min Horizontal motion distance of main shaft 900mm Lifting height of machine table 150mm Power of main motor 1.5kw Voltage 3～380V Frequency 50Hz Power of cooling pump 0.125kw Voltage 3～380V Frequency 50H...
Honing Machine 3MQ9814

Short Description:

Model 3MQ9814 Bore honing diameter range Φ40-Φ140 mm Max. bore honing depth 320mm Honing spindle speed 125/250rpm Max. spindle stroke 340mm Spindle lifting and lowering speed (stepless) 0-14m/min Working accuracy (1) Cylirndricity 0.0075mm (2) Circularity 0.0050mm (3) Surface finish 0.63 Total capacity of electric motors; 2.52 Kw including: Honing head motor 0 90 K...
Horizontal Linear Boring & Honing Machine ...

Short Description:

NO ITEMS LBH100 1 Working range Ф46~Ф178 mm 2 Spindle speed 1245 * 232 * 228 mm 3 Power of spindle motor 1.5 KW 4 Power of cooling oil pump 0.12 KW 5 Working cavity (L * W * H) 1140*710*710 mm 6 Physical dimensions of the machine (L * W * H) 3200*1480*1920 mm 7 Max. stroke length of the spindle 660 mm 8 Min. amount of coolant 130 L 9 Max. amount of coo...
Valve Grinding Machine LD100A LD100B

Short Description:

Model Unit LD100A LD100B Valve stem dia. mm 3.5-20 3.5-20 Valve head dia. mm 12-100 12-100 Valve length mm 70-450 70-450 Angle grinding range degree 10-57 10-57 Main wheel diameter mm 200 200 Cup wheel diameter mm 100 100 Main wheel width mm 15 15 Grinding wheel travel mm 90 90 Valve feed travel mm 90 90 Spindle motor Power w 750 750 Speed rpm 3600 3600 Valve driv...
Valve Grinding Machine LD100A

Short Description:

Model Unit LD100A Valve stem dia. mm 3.5-20 Valve head dia. mm 12-100 Valve length mm 70-450 Angle grinding range degree 10-57 Main wheel diameter mm 200 Cup wheel diameter mm 100 Main wheel width mm 15 Grinding wheel travel mm 90 Valve feed travel mm 90 Spindle motor Power w 750 Speed rpm 3600 Valve driving motor Power w 180 Speed rpm 120-750 Coolant motor P...
Cylinder Head Pressure Tester TPT1650 TPT1750 L...

Short Description:

Model Unit TPT1650 TPT1750 Cylinder head size (HxWxL) mm 300x430x1380 405x465x1450 Gear motor kw 0.37 0.37 Pump motor kw 0.75 0.75 Rotational speed Tr/min 4.5 4.5 Heating elements kw 5.5 5.5 thermostat ℃ 0-92 0-92 Power supply 380V 50HZ 3Phase 380V 50HZ 3Phase Net weight approx kg 610 750 Overall size mm 2200x1060x1750 2300x1200x1800 Packing size mm 2450x1220x1350 2550...
