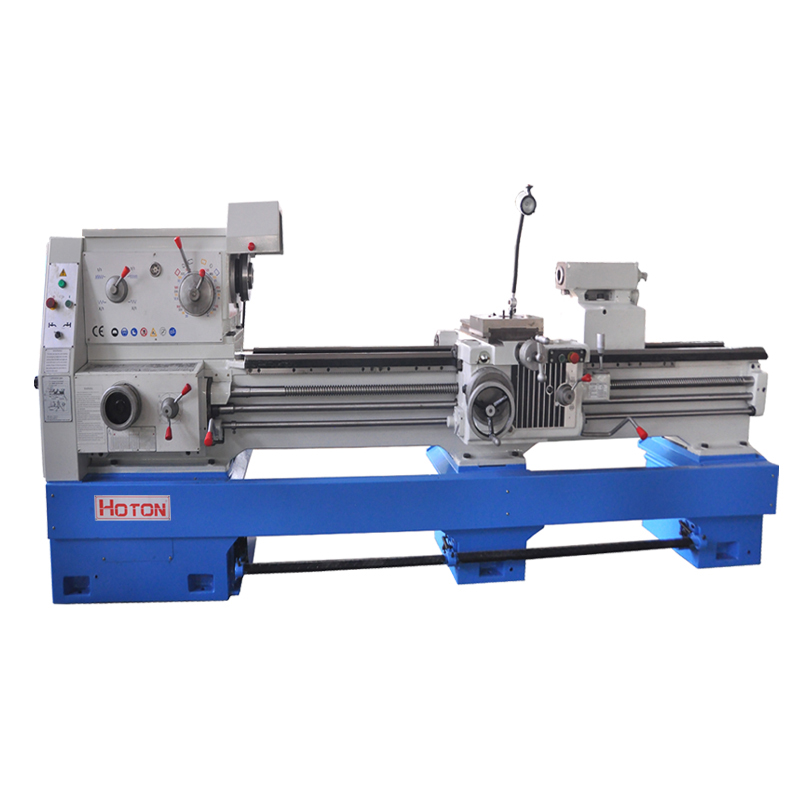

Factory wholesale Lathe Cs6266c - Universal Lathe CA6240 – Hoton Detail:

BIG BORE GAP BED LATHE FEATURES:

1.Widen guideway

2.High quality casting body

3.Hardened and ground bed way coated with Turcite-B

4.Integrated automatic lubrication

SPECIFICATIONS:

MODEL			CA6140	CA6240
			CA6140B	CA6240B
Max .Swing over bed			400mm
Max .Swing over carriage			210mm
Max .Swing in gap			——	630mm
Effective gap length			——	210mm
Max .length of work piece			750/1000/1500/2000/2200/3000mm
Width of bed			400mm
Section of turning tool			25×25mm
Spindle	Spindle speed		10-1400rpm/16-1400rpm(24steps)
	Hole through spindle		52mm ,(80mm),[105mm]
	Spindle taper		No.6(MT6)(Φ90 1:20)[Φ113:20]
Feed	No. of feed		(64 kinds)(for each)
	Range of metric threads		(1-192mm) (44 kinds)
	Range of inch threads		(1-24tpi) (21kinds)
	Range of module threads		0.25-48 (module 39 kinds)
	Range of diametral pitc threads		1-96DP (37 kinds)
Tailstock	Max. tailstock spindle travel		150mm
	Tailstock spindle diameter		75mm
	Taper of tailstock spindle center hole		NO.5 (MT5)
Main motor			7.5KW(10HP)
Packing		750mm	2440×1140×1750
(L×W×H mm)		1000mm	2650×1140×1750
		1500mm	3150×1140×1750
		2000mm	3650×1140×1750
		2200mm	4030×1140×1750
		3000mm	4800×1140×1750
Weight(kg)		Length	G.W. N.W.
		750mm	2100 1990
		1000mm	2190 2070
		1500mm	2350 2220
		2000mm	2720 2570
		2200mm	2800 2600
		3000mm	3300 3200
