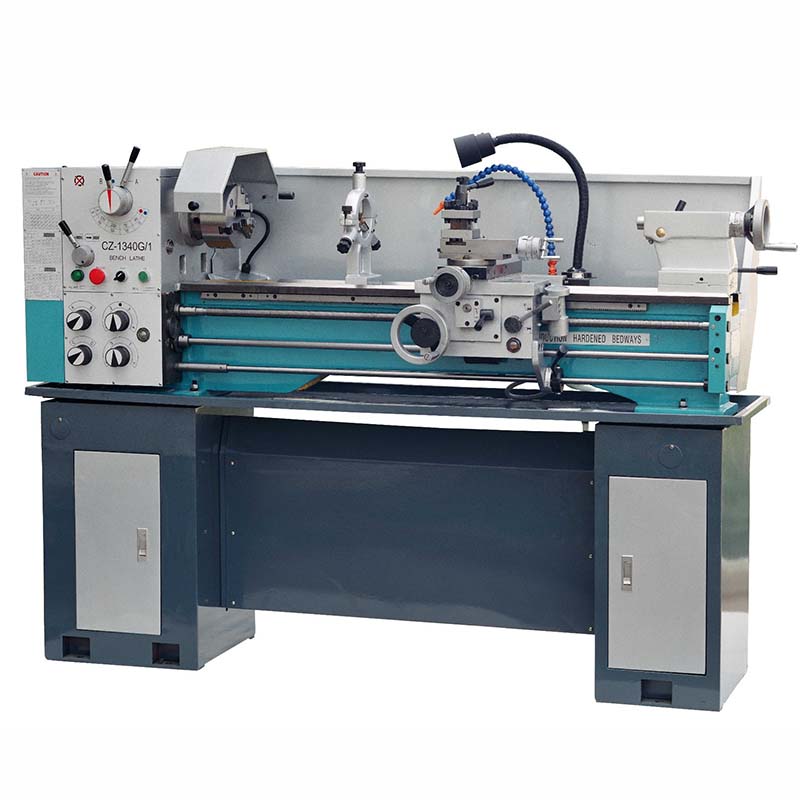

factory Outlets for Vertical Turret Milling Machine - Bench Lathe CZ1340G/1 – Hoton Detail:

LATHE ENGINEERED FROM HIGH GRADE CASTINGS
V way bed ways induction hardened and ground
Gap bed
Cross and longitudinal interlocking feed, enough safety
ASA D4 cam-lock spindle nose
Various thread cutting function
SPECIFICATIONS:

BENCH LATHE		CZ1340G/1 CZ1440G/1
Main data	Swing over bed	φ 330mm / φ 355mm
	Swing over carriage	φ 195mm / φ 220mm
	Swing over gap	φ 476mm / φ 500mm
	Width of bed-way	186mm
	Distance between centers	1000mm
Spindle	Taper of spindle	M. T. 5
	Spindle diameter	φ 38mm
	Step of speed	8 Steps
	Range of speed	70-2000 rpm
	Head	D1-4
Thread and feed system	Metric thread	26kinds (0.4~7mm)
	Inch thread	34kinds(4~56T. P. I)
	Module thread	16 kinds(0.35~5M. P)
	Diametral thread	36 kinds(6~104D. P)
	Longitudinal feeds	0.052~1.392mm (0.002" ~0.0548" )
	Cross feeds	0.014~0.38mm (0.00055" ~0.015" )
Main lead screw	Diameter lead screw	φ 22mm(7/8" )
Main lead screw	Pitch of lead screw	3mm or 8T. P. I
Saddle and carriage	Saddle travel	1000mm
	Cross travel	170mm
	Compound travel	74mm
Tailstock	Barrel travel	95mm
	Barrel diameter	φ 32mm
	Taper of center	M. T. 3
Power	Motor power	1.5KW (2HP)
Power	Motor for coolant system' s power	0.04KW (0.055HP)
Shipment data	Machine(L× W× H)	1920× 760× 760 (mm)
	Stand(left) (L× W× H)	440× 410× 700 (mm)
	Stand (right)(L× W× H)	370× 410× 700 (mm)
	Machine	510/565 (kgs)
	Stand	70/75 (kgs)
	Loading qauntity/20" container	22 pcs

Product detail pictures:
