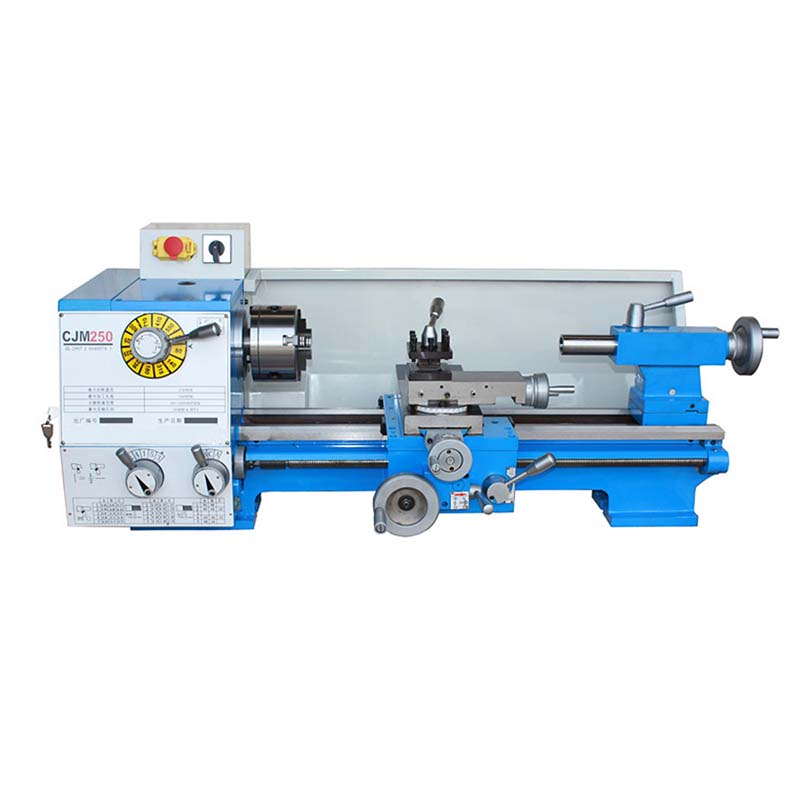

Wholesale CK6150 CNC Lathe - CJM250 Bench Lathe by Hoton

China wholesale Ck6150 Cnc Lathe - Bench Lathe-CJM250 – Hoton

Short Description:

MICRO BENCH LATHE FEATURES: Precision ground and hardened bed ways. The spindle is supported with precision roller bearings. Headstock gears are made of high quality steel, ground and hardened. Easy operating speed change levers. Spindle speed range 80-1600rpm. Easy operating gear box has various feeds and thread cutting function. With or without cabinet according to requirement. SPECIFICATIONS: SPECIFICATIONS UNITS CJM250 Lathe bed maximum turning diameter mm 250 Sk...

Send email to us

Product Detail

Product Tags

Feedback (2)

We regularly perform our spirit of ''Innovation bringing progress, Highly-quality making certain subsistence, Administration marketing benefit, Credit score attracting customers for Bending Machine , Copy Of Flat-Surface Grinder , Brake Lathe , We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success!

China wholesale Ck6150 Cnc Lathe - Bench Lathe-CJM250 – Hoton Detail:

MICRO BENCH LATHE FEATURES:

Precision ground and hardened bed ways.
The spindle is supported with precision roller bearings.
Headstock gears are made of high quality steel, ground and hardened.
Easy operating speed change levers.
Spindle speed range 80-1600rpm.
Easy operating gear box has various feeds and thread cutting function.
With or without cabinet according to requirement.
SPECIFICATIONS:

SPECIFICATIONS	UNITS	CJM250
Lathe bed maximum turning diameter	mm	250
Skateboard largest workpiece turning diameter	mm	500
Maximum workpiece diameter rotary table	mm	150
Spindle hole diameter	mm	26
Taper of spindle	mm	No.4
Spindle speed	mm	80—1600r/r.p.m 12
The maximum horizontal stroke of cutter	mm	130
The knife frame maximum longitudinal travel	mm	75
Processing metric thread number	mm	15
Processing range of metric threads	mm/r	0.25-2.5
Longitudinal feed spindle turret at every turn	mm	0.03-0.275
The transverse feed amount per turn spindle turret	mm	0.015-0.137
The maximum amount of movement of the tailstock sleeve	mm	60
Taper the tailstock sleeve	mm	No.3
Electric machinery	w	750W/380V/50HZ
Gross / net weight	kg	180/163
Dimensions (length * width * height)	mm	1130×550×405
Packing size (length * width * height)	mm	1200×620×600
