Magnetic Drill:
Magnetic drill also called Magnetic broach drill or Magnetic drill press. Its performance Principle is the Magnetic base adhesive onto the surface of working metal.Then press the working handle downwards and drill through the heaviest beams and steel plating. The magnetic base adhesive power controlled by electric coil that Electromagnetic.Using annular cutters, these drills can punch up to 1-1/2" diameter holes in steel up to 2" thick. They are built with durability and heavy use in mind and feature powerful motors and strong magnetic bases.
Magnetic Drill Usage:
Magnetic drills is a new type of drilling tools, which construction and design very precision and uniform, very potable and universal drilling machine for its light duty. Magnetic base made it very convenient on working Horizontally(water level), vertically, upwards or in high point. Magnetic drills is an ideal machine in steel construction, industrial construction,engineering,equipment reparation, railways, bridges, ship building, crane, metal working, boilers, machinery manufacturing, environmental protection, oil and gas pip line industries.
| MODEL | JC23B-2
（Rotatable base） |
JC23B-3 | JC28A-2
（Rotatable base） |
JC28A-3 |
| Motor power (w) | 1100 | 1100 | 1200 | 1200 |
| Voltage | 220V,50/60Hz,Single phase | 220V,50/60Hz,Single phase | 220V,50/60Hz,Single phase | 220V,50/60Hz,Single phase |
| Speed (r/min) | 550 | 550 | 550 | 550 |
| Core drill(mm) | Ø32 | Ø32 | Ø32 | Ø32 |
| Twist drill (mm) | Ø23 | Ø23 | Ø28 | Ø28 |
| Max.Travel(mm) | 185 | 185 | 185 | 185 |
| Min. plate thickness(mm) | 8 | 8 | 8 | 8 |
| Spindle taper | Morse2# | Morse2# | Morse2# | Morse3# |
| Magnetic adhesion(N) | >14000 | >14000 | >15000 | >15000 |

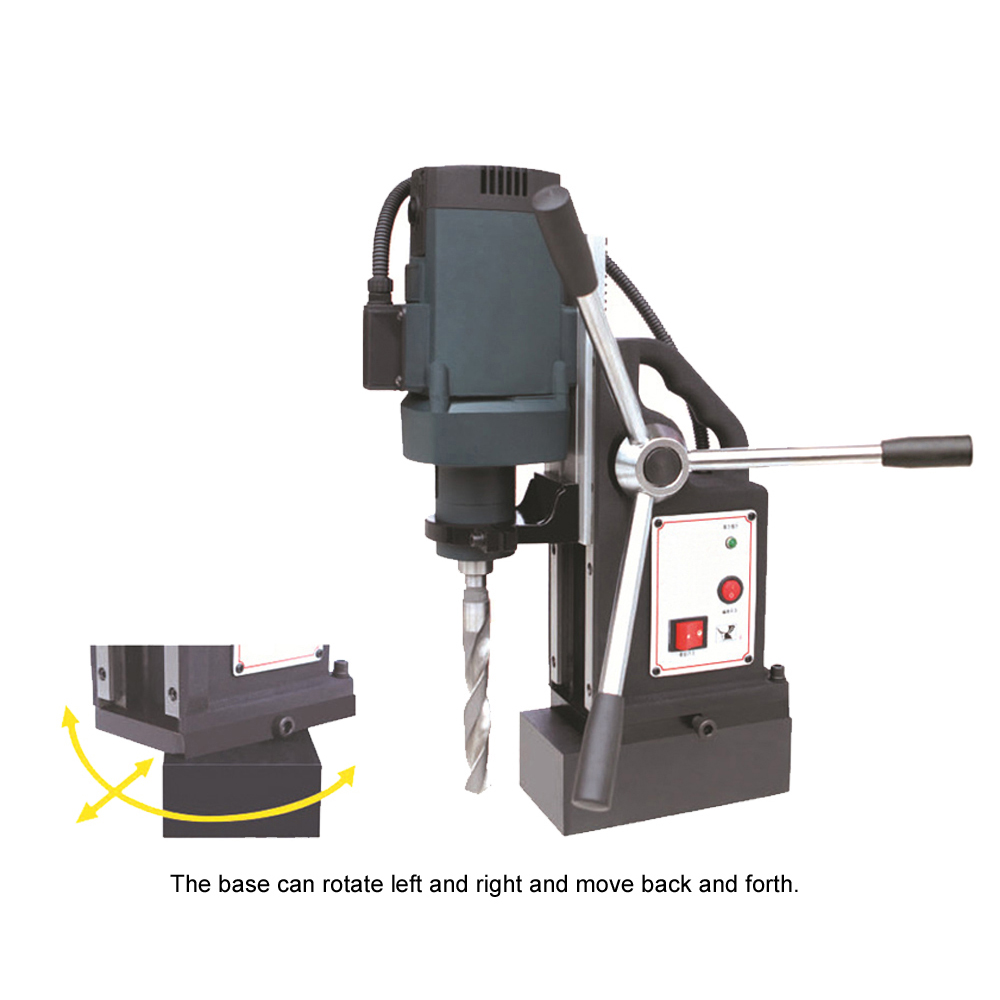

| Rotation angle | Left and right 45° | / | Left and right 45° | / |
| Horizontal movement(mm) | 20 | / | 20 | / |
| Packing size(mm) | 421*430*181 | 421*386*181 | 421*430*181 | 421*386*181 |
| N.W / G.W(kg) | 23.8/25 | 21.8/23 | 23.8/25 | 21.8/23 |

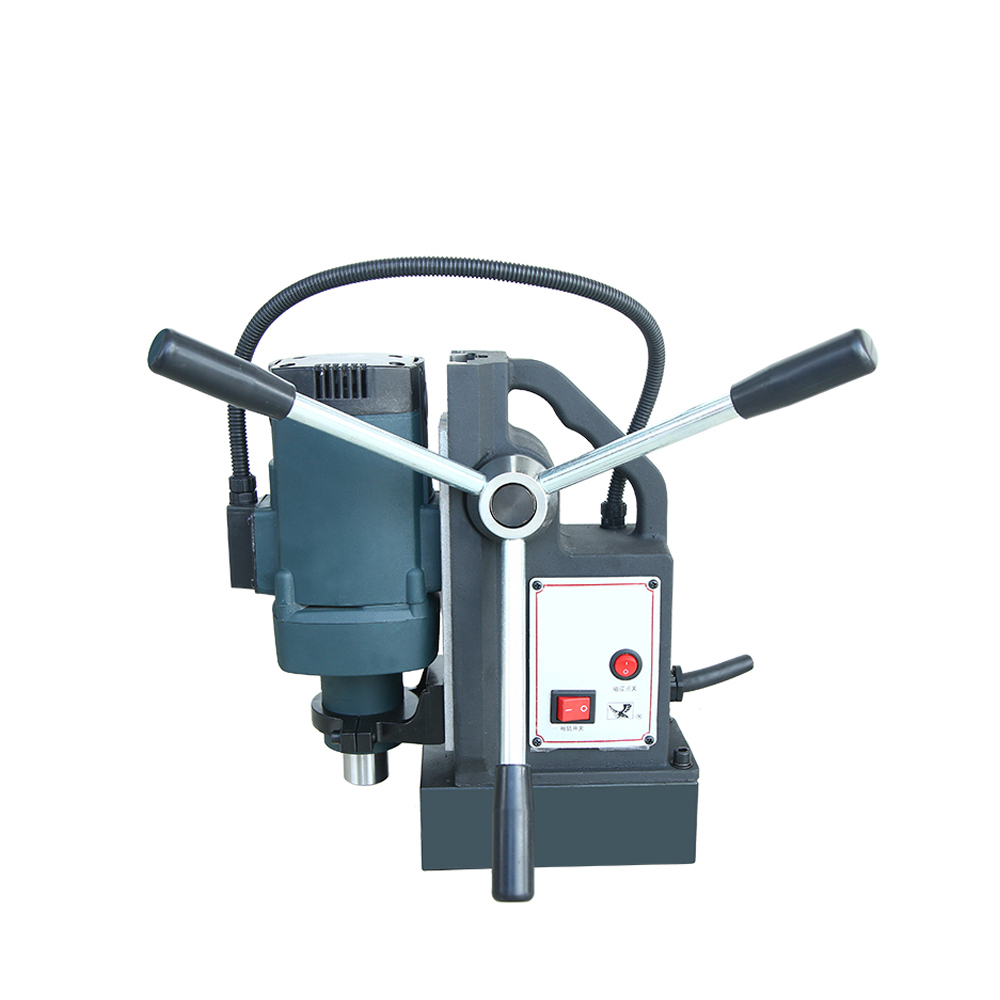

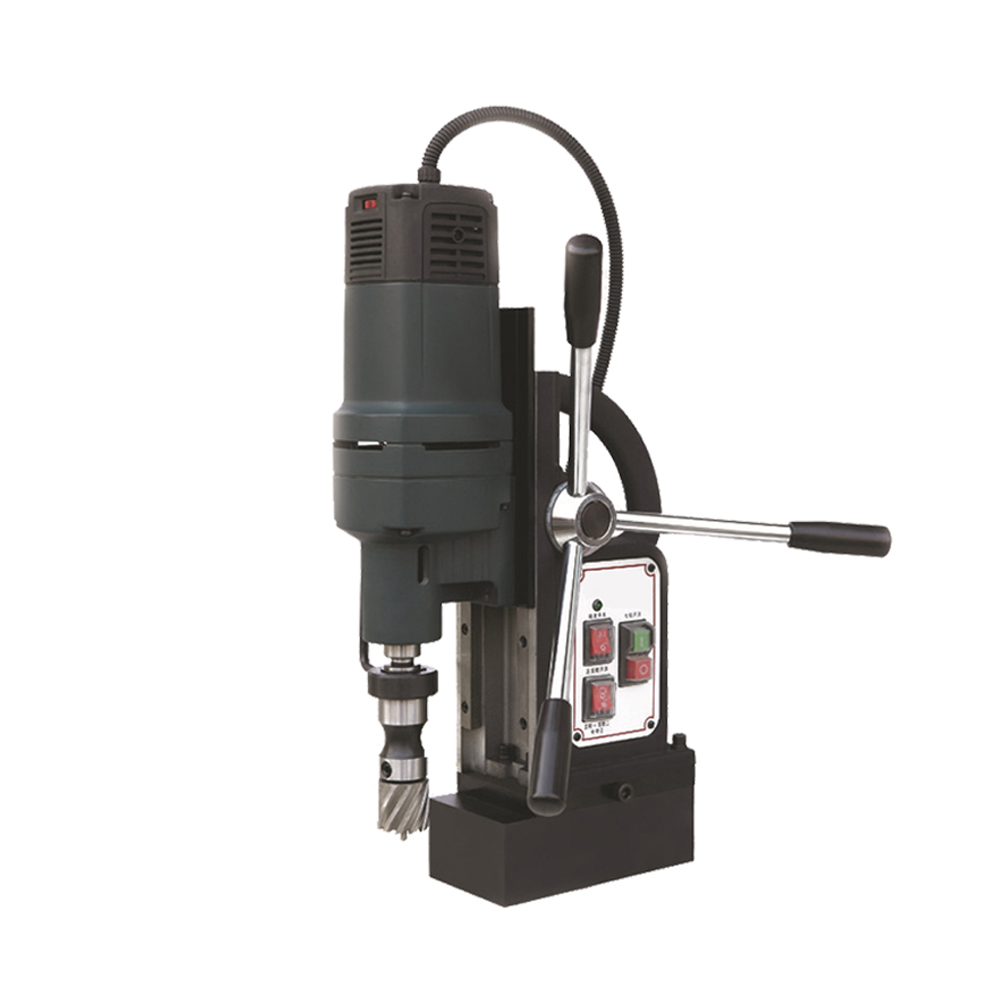

Product detail pictures:
