Bottom price Bench Lathe - Lathe Chuck K12 SERIES – Hoton Detail:

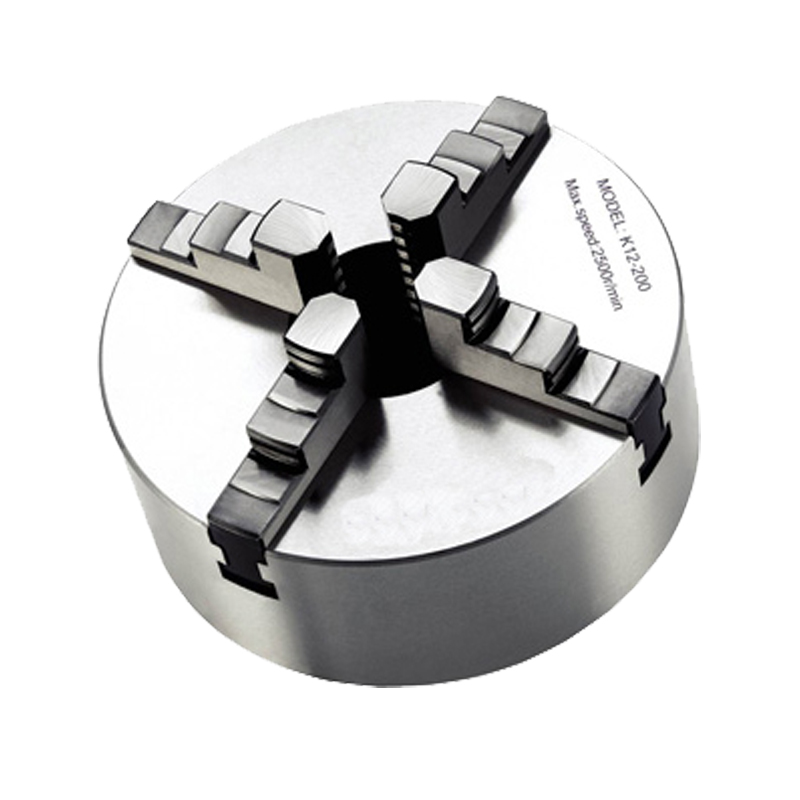

K12 SERIES FOUR-JAW SELF-CENTERING CHUCK

FOUR JAW SELF CENTRING CHUCK

FOUR JAW SELF CENTRING CHUCK is suitable for batch process of square,eight-square prism accesspries and is self centering

SPECIFICATIONS:

Size D	D1	D2	D3	H	H1	h	Z-d
K1280	55	66	16	66	50	3.5	3-M6
K12100	72	84	22	74.5	55	3.5	3-M8
K12125	95	108	30	84	58	4	3-M8
K12130	100	115	30	86	60	3.5	3-M8
K12160	130	142	40	95	65	5	3-M8
K12160A		142	40	109	65	5	3-M8
K12165	130	145	40	96.5	66.5	4.5	3-M8
K12165A	130	145	40	110.5	66.5	4.5	3-M8
K12190	155	172	55	109	75	5	3-M10
K12190A		172	55	122	75	5	3-M10
K12200	165	180	65	109	75	5	3-M10
K12200A	165	180	65	122	75	5	3-M10
K12250	206	226	80	120	80	5	3-M12
K12250A	206	226	80	136	80	5	3-M12
K12315	260	285	100	142.5	90	6	3-M16
K12315A	260	285	100	155.5	90	6	3-M16
K12320	270	290	100	142.5	90	6	3-M16
K12320A	270	290	100	155.5	90	6	3-M16
K12325	272	296	100	142.5	90	6	3-M16
K12325A	272	296	100	155.5	90	6	3-M16
K12380	325	350	130	155.5	100	6	3-M16
K12380A	325	350	130	171.5	100	6	3-M16
K12400	340	368	130	155.5	100	6	3-M16
K12400A	340	368	130	171.5	100	6	3-M16
K12500A	440	465	200	203	115	6	6-M16
K12630A	560	595	260	218	130	7	6-M16
K12800A	710	760	385	249	148	8	6-M20
K121000A	910	950	460	266	165	8	6-M24
