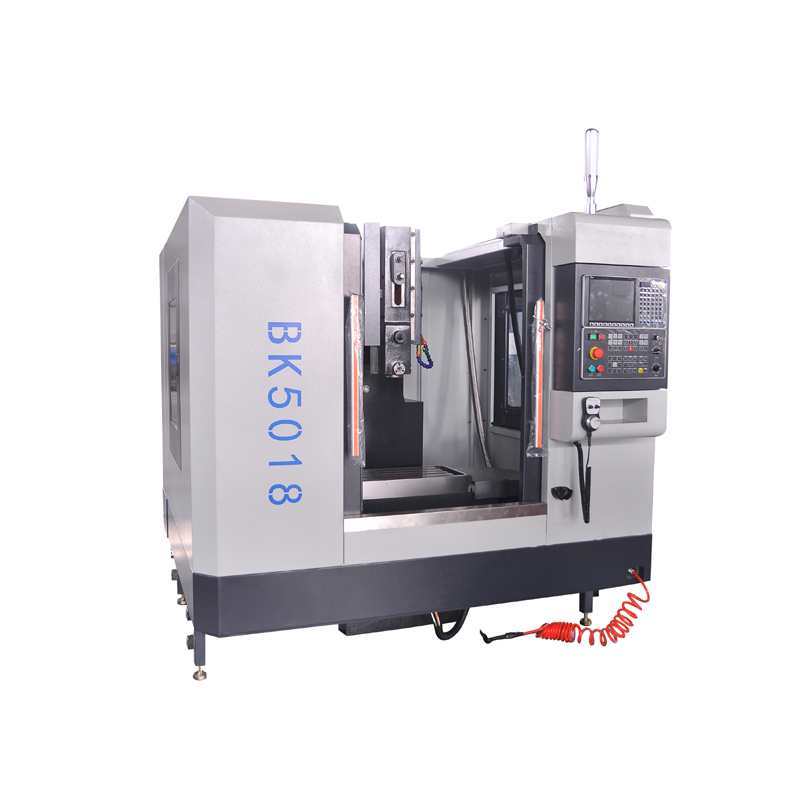

2017 wholesale price Lathe With Milling Head - Full Cover CNC Slotter Machine BK5018 – Hoton Detail:

DESCRIPTION OF GOODS:

1. The working table of the machine tool is provided with three different directions of feed (longitudinal, horizontal and rotary), therefore work object go through once clamping, Several surfaces in the machine tool machining,
2. Hydraulic transmission mechanism with sliding pillow reciprocating motion and hydraulic feed device for working table.
3. The sliding pillow has the same speed in every stroke, and the movement speed of the ram and the working table can be adjusted continuously.
4. Hydraulic control table have ram commutation oil for oil reversing mechanism, In addition to hydraulic and manual feed outer, Even there single motor drive vertical, horizontal and rotary fast moving.
5. Use hydraulic feed the slotting machine, Is when the work is over turning back instantaneous feed, Therefore be better than mechanical slotting machine used drum wheel feed.
This machine be used for interpolation plane, forming surface and Keyway Etc. And can insert the inclination in the 10° Mold and other within the scope of etc. work matter,,
Enterprise suitable for single or small batch production.
Machine parameters:

SPECIFICATION	UNIT	BK5018
Ram maximum slotting length	mm	180
Ram stroke adjustment	mm	80
Ram per minute motion data	N/min	46/60/90
Work table size	mm	600X320
Table travel (X,Y)	mm	460X320
The knife head supporting hole axis to distance of upright column for arm	mm	400
The knife head supporting hole end to table working distance	mm	480
X to the motor torque	N.M	6
Y to the motor torque	N.M	6
Fast moving	X(m/min) Y(m/min)	5 5
Ball screw X		FFZD3205-3/P4
Ball screw Y		FFZD3205-3/P4
The main motor power	K w	1.5/2/2.2
Machine weight	kg	1500
Ram maximum slotting length	mm	180

Product detail pictures:
