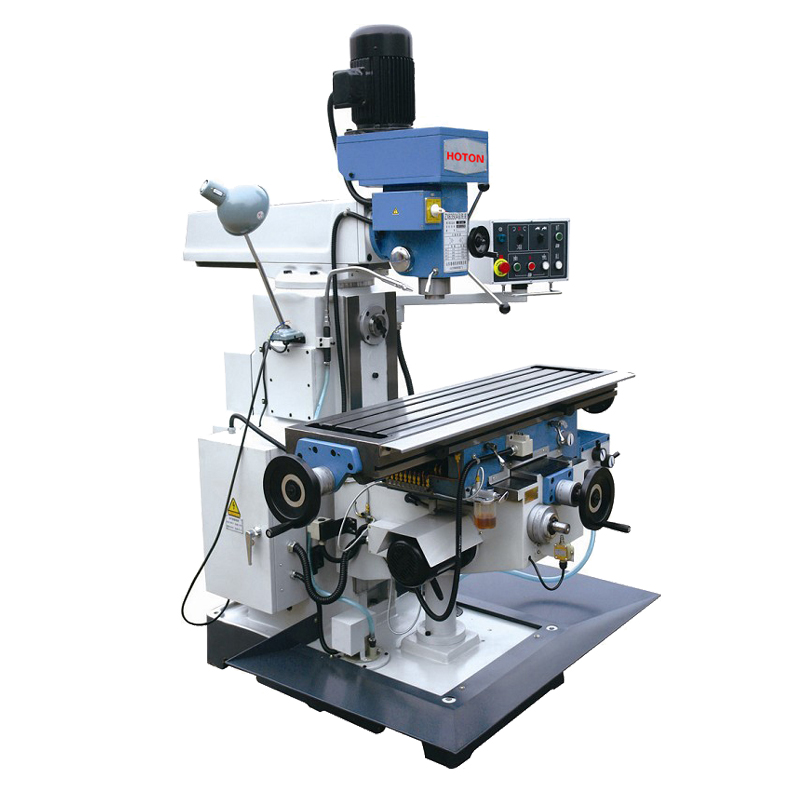

2017 Latest Design Horizontal Shaper Machine - Universal Milling Drilling Machine ZX6350A – Hoton Detail:

DRILLING MILLING MACHINE FEATURES:

Horizontal and vertical Drilling and Milling Machine X,Y-axis auto-feeding,
Z--axis lifting motor.
spindle auto-feeding.

SPECIFICATIONS:

MODEL	ZX6350A	ZX6350ZA
Table size(mm)	1250x320	1250x320
Table travel(mm)	600×270	600×300
Table feeds range(x/y)(mm/min)	22-555(8 steps)(max.810)	22-555(8 steps)(max.810)
Max drilling dia(mm)	50	50
Max. end milling width(mm)	100	100
Max vertical milling dia(mm)	25	25
Max tapping dia(mm)	M16	M16
Distance from horizontal spindle to table(mm)	0-300	0~300
Distance from vertical spindle to column(mm)	200-550	200~500
Distance from vertical spindle to table(mm)	100-400	100-400
Distance from horizontal spindle to arm(mm)	175	175
Spindle taper	ISO40, MT4,ISO30	ISO40,
Spindle travel(mm)	120	120
Spindle speed range (r.min)	115-1750(V),40-1310(H)	60~1500/8(V), 40~1300/12(H)
T of table (NO./WIDTH/DISTANCE)(mm)	3/14/70	3/14/70
Sleeve feed(mm/min)		0.08/0.15/0.25
Up/down speed of table	560	560
Speed of coolant pumps	12	12
Coolant pump motor(w)	40	40
Up/down motor of headstock(w)	750	750
Main motor(kw)	0.85/1.5(V) 2.2(H)	2.2(V) 2.2(H)
Overall dimension(L×W×H)(mm)	1655×1450×2150	1700×1480×2150
N.W./G.W(kg)	1400/1550	1300/1450

Product detail pictures:
