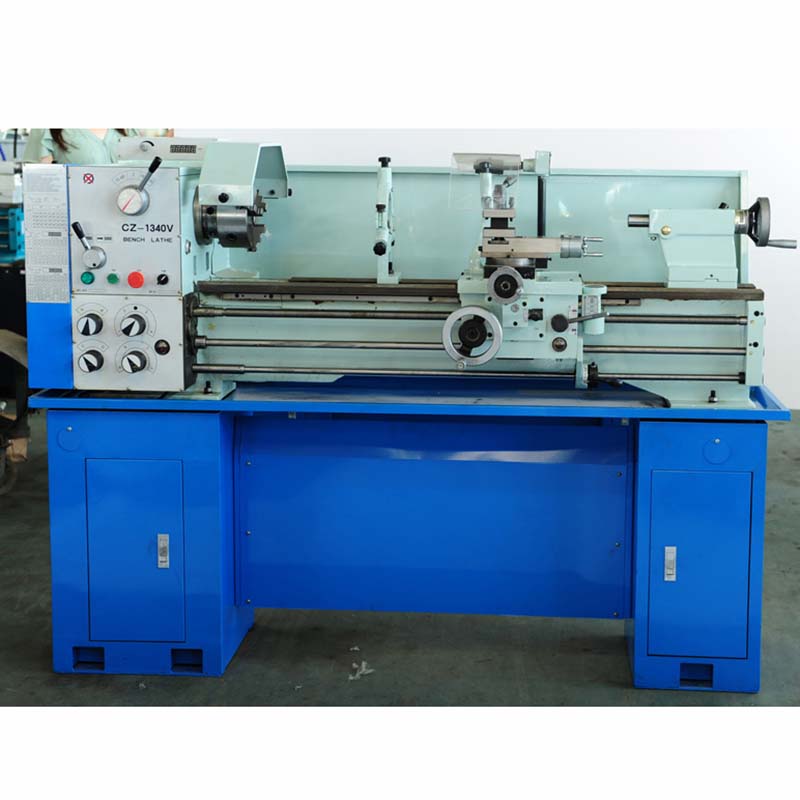

2017 Latest Design Horizontal Shaper Machine - Bench Lathe-CZ1340V CZ1440V – Hoton
2017 Latest Design Horizontal Shaper Machine - Bench Lathe-CZ1340V CZ1440V – Hoton Detail:
VARIABLE SPEED LATHE FEATURES
VARIABLE SPEED
Supersonic frequency hardened bed ways
Precision roller bearing for spindle
High quality steel, ground and hardened gear inside headstock
Easy and fast operating gearbox
Enough strong power motor
ASA D4 camlock spindle nose
Various threads cutting functions available
SPECIFICATIONS:
|
ITEM |
|
CZ1340V |
CZ1440V |
CZ1237V |
|
Swing over bed |
mm |
φ330 |
φ355 |
φ305 |
|
Swing over carriage |
mm |
φ195 |
φ220 |
φ173 |
|
Swing over gap |
mm |
φ476 |
φ500 |
φ440 |
|
Width of bed-way |
mm |
186 |
186 |
182 |
|
Distance between centers |
mm |
1000 |
1000 |
940 |
|
Spindle taper |
|
M.T.5 |
M.T.5 |
M.T.5 |
|
Spindle bore |
mm |
φ38 |
φ38 |
φ38 |
|
Step of speed |
|
Variable |
Variable speed |
Variable |
|
Range of speed |
rpm |
Low 70~480 |
low : 70~480 |
Low 70~520 |
|
high 480~2000 |
high: 480-2000 |
High 520~1700 |
||
|
Head |
|
D1-4 |
D1-4 |
D1-4 |
|
Metric thread |
|
26kinds (0.4~7mm) |
26kinds (0.4~7mm) |
26kinds (0.4~7 mm) |
|
Inch thread |
|
34kinds(4~56T.P.I) |
34kinds(4~56T.P.I) |
34kinds(4~56T.P.I) |
|
Moulder thread |
|
16 kinds(0.35~5M.P) |
16 kinds(0.35~5M.P) |
|
|
Diametral thread |
|
36 kinds(6~104D.P) |
36 kinds(6~104D.P) |
|
|
Longitudinal feeds |
mm/r |
0.052~1.392 (0.002”~0.0548”) |
0.052~1.392 (0.002”~0.0548”) |
0.052~1.392 (0.002”~0.0548”) |
|
Cross feeds |
mm/r |
0.014~0.38 (0.00055”~0.015”) |
0.014~0.38 (0.00055”~0.015”) |
0.014~0.38 (0.0007”~0.0187”) |
|
Diameter lead screw |
mm |
φ22(7/8”) |
φ22(7/8”) |
φ22(7/8”) |
|
Pitch of lead screw |
|
3mm or 8T.P.I |
3mm or 8T.P.I |
3mm or 8T.P.I |
|
Saddle travel |
mm |
1000 |
1000 |
810 |
|
Cross travel |
mm |
170 |
170 |
150 |
|
Compound travel |
mm |
74 |
74 |
90 |
|
Compound travel |
mm |
95 |
95 |
100 |
|
Barrel diameter |
mm |
φ32 |
φ32 |
φ32 |
|
Taper of center |
mm |
M.T.3 |
M.T.3 |
M.T.3 |
|
Motor power |
Kw |
1.5(2HP) |
1.5(2HP) |
1.5(2HP) |
|
Motor for coolant system’s power |
Kw |
0.04(0.055HP) |
0.04(0.055HP) |
0.04(0.055HP) |
|
Machine(L×W×H) |
mm |
1920×760×760 |
1920×760×760 |
1780×750×760 |
|
Stand(left) (L×W×H) |
mm |
440×410×700 |
440×410×700 |
400×370×700 |
|
Stand(right) (L×W×H) |
mm |
370×410×700 |
370×410×700 |
300×370×700 |
|
Machine |
Kg |
500/560 |
505/565 |
390/440 |
|
Stand |
Kg |
70/75 |
70/75 |
60/65 |
Product detail pictures:
