High-Quality Variable Speed Lathe & ZX6350Z Milling Machine from Hoton

2017 High quality Variable Speed Lathe - Universal Milling Drilling Machine ZX6350Z – Hoton

Short Description:

MILLING DRILLING MACHINE FETARURES: 1.small,flexibility 2.X ,Y axis power feed 3.Vertical and horizontal multifunctional drilling and milling machine 4.Gear drive milling head 5.Three axis hardened treatment. SPECIFICATIONS: MODEL ZX6350C ZX6350Z Max.drilling dia(mm) 50;30 50;30 Spindle taper MT4;R8;ISO30 MT4;R8;ISO30;ISO40 Max.vertical milling dia(mm) 25 25 Max.boring dia(mm) 120 120 Max.tapping dia(mm) M16 M16 Distance spindle to table sur...

Send email to us

Product Detail

Product Tags

Feedback (2)

"Based on domestic market and expand abroad business" is our progress strategy for Grinders , Lathe , Pneumatic Forging Hammer , We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success!

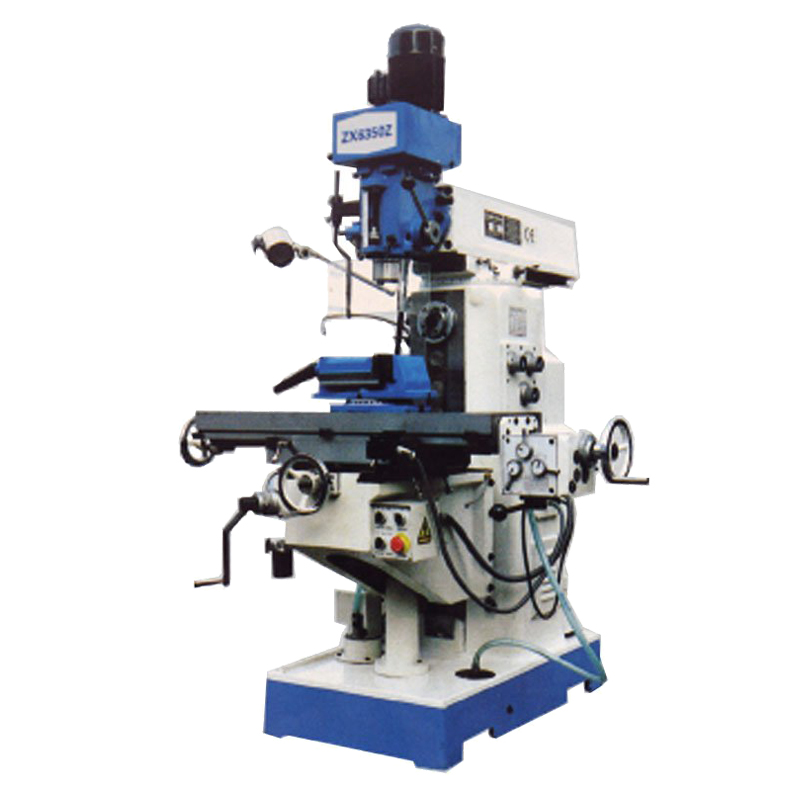

2017 High quality Variable Speed Lathe - Universal Milling Drilling Machine ZX6350Z – Hoton Detail:

MILLING DRILLING MACHINE FETARURES:

1.small,flexibility

2.X ,Y axis power feed

3.Vertical and horizontal multifunctional drilling and milling machine

4.Gear drive milling head

5.Three axis hardened treatment.

SPECIFICATIONS:

MODEL		ZX6350C	ZX6350Z
Max.drilling dia(mm)		50;30	50;30
Spindle taper		MT4;R8;ISO30	MT4;R8;ISO30;ISO40
Max.vertical milling dia(mm)		25	25
Max.boring dia(mm)		120	120
Max.tapping dia(mm)		M16	M16
Distance spindle to table surface(mm)		100-480(8)	140-490(8)
Spindle speeds range(rpm)(steps)	Vertical	115-1750(8)	60-1500(8)
Spindle speeds range(rpm)(steps)	Horizontal	40-1300(12)	40-100(12)
Spindle travel(mm)		120	120
Table size(mm)		1120X280;1000X280	1120X280;1000X280
Table travel(mm)		600X260	600X260
Motor(KW)	Vertical	0.85	1.5
Motor(KW)	Horizontal	1.5/2.2	2.2
N.W/G.W(kgs)		1200/1350	1200/1350
Overall dimensions(mm)		1352x1285x2130	1352x1285x2130

Product detail pictures:
