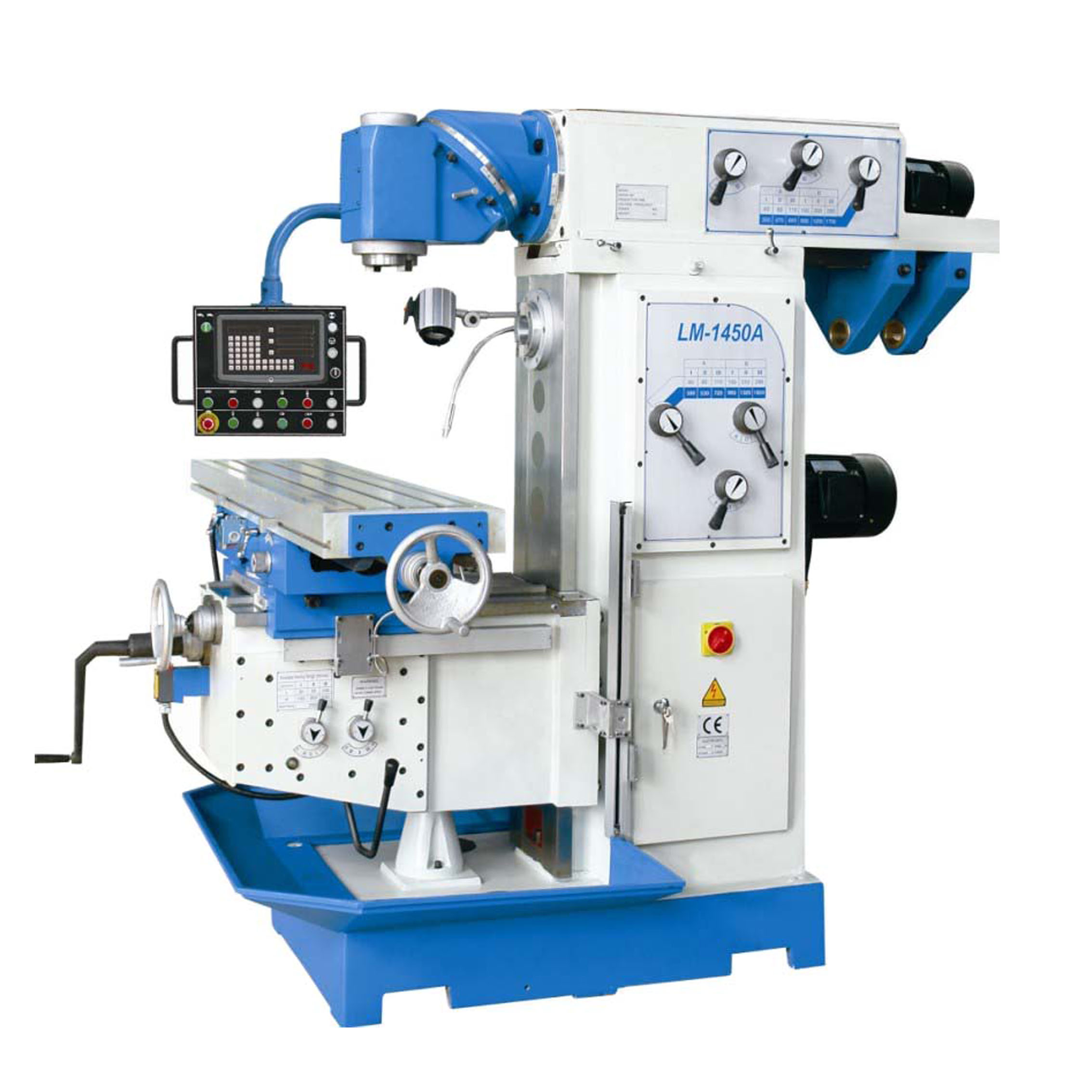

2017 China New Design Grinding Machine - Universal Vertical Horizontal Ram Milling Machine LM1450A – Hoton
2017 China New Design Grinding Machine - Universal Vertical Horizontal Ram Milling Machine LM1450A – Hoton Detail:
SWIVEL HEAD UNIVERSAL MILLING MACHINE FEATURES:
- LM-1450A universal swivel head milling machine is based on theLM1450,
2. Installation of rotary table 45 degrees,
3. Processing of a wide range, three-axes automatic feeds,
4. Large torque and strong power, 1.5KW,
5. Fast-moving 2000mm/min.
6. Spindle taper is ISO 50SPECIFICATIONS:
|
MODEL |
UNIT |
LM1450A |
|
Table size |
mm |
1600x360 |
|
T slot no./width/distance |
no |
5/18/80 |
|
Max. load of Table |
kg |
400 |
|
swivel angle of table |
degree |
±45º |
|
table Longitudinal travel(manual/auto) |
mm |
900 |
|
table Cross travel (manual/auto) |
mm |
320 |
|
table Vertical travel(manual/auto) |
mm |
400 |
|
Swivel angle of milling head |
360º |
|
|
Spindle taper |
ISO50 |
|
|
spindle speed /step -- Vertical |
rpm |
60-1800 |
|
--Horizontal |
rpm |
60-1700 |
|
Distance from vertical spindle axis to column surface |
mm |
160-800 |
|
Distance from vertical spindle nose to table surface |
mm |
200-600 |
|
Distance from horizontal spindle axis to table surface |
mm |
0-400 |
|
Distance from horizontal spindle axis to ram bottom |
mm |
200 |
|
ram travel |
mm |
600 |
|
Longitudinal/cross feed |
mm / min |
30~630(X,Y) |
|
Vertical feed /step |
mm/min |
30~630(Z) |
|
Longitudinal/cross rapid speed |
mm / min |
2000 (XY) |
|
Rapid Traverse vertical |
mm/min |
2000 (Z) |
|
main motor |
kw |
4 |
|
(X/Y/Z) feed motor |
kw |
1.5 |
|
coolant motor |
kw |
90W |
|
overall dimension |
cm |
207x202.5x220 |
|
Machine weight |
kg |
2650 |
Product detail pictures:
