100% Original Lathe Cm6241 - Magnetic Chuck HT series – Hoton Detail:
WITHOUT PUMP:
A. this product adopts vacuum ejector, only through compressor can work.
B. even machine had inhaled cooling oil. cooling water or rubbish etc. Vacuum Chuck also can exclude them.
2. FOR AVAILABLE ALL PROCESS PRODUCTS:
A. work well for up layer process, grinding.
B. assist metal using, special shape produets process also easy to drill work.
3. AT WILL TO ADJUST SIZE:
A. according to size of process products to change assemble and adjust machine.
B. according to process products size to place station.
4. PLACE OF KEY THROUGHAND WORKS TOPPER:
A.vacuum chuck of bottom install key through, so can get exact parallel angle and vertical angle.
B.vacuum chuck of side install two works stoppers, prevent from momentum.
5.FOLLOWING ARE SUITABLE FOR CLAMPING PROCESS:
A. light metal, hard metal, iron board etc.
B. plastic products, ceramics, glass, alminum steelless, wood stone materials etc. All un-magnetic products and un-ventilation smooth products.
C. products of small shape, smooth and complicated process.
D. products of outside need full process will cause scar crooked, curved.
F.products of supper thin can’t clamp.
|

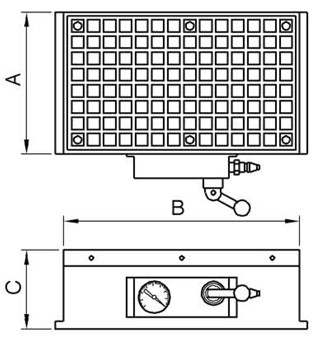

Model no. |
Outline dimensions(mm) |
Air consume (L/min) |
Max suck (L/min) |
N.W.(KG) |
||
|
Lenghth(A) |
Width(B) |
Height(C) |
||||
|
HT1515 |
150 |
150 |
50 |
23 |
12 |
9.2 |
|
HT1530 |
150 |
300 |
50 |
23 |
12 |
13.7 |
|
HT2020 |
200 |
200 |
50 |
46 |
24 |
12.1 |
|
HT2040 |
200 |
400 |
100 |
46 |
24 |
22.2 |
|
HT2525 |
250 |
250 |
100 |
78 |
40 |
16.4 |
|
HT2550 |
250 |
500 |
100 |
78 |
40 |
30.6 |
|
HT3030 |
300 |
300 |
100 |
23 |
12 |
23.4 |
|
HT3045 |
300 |
450 |
100 |
46 |
24 |
37.0 |
|
HT3060 |
300 |
600 |
100 |
46 |
24 |
48.6 |
|
HT4080 |
400 |
800 |
100 |
92 |
48 |
72.9 |
|
HT40100 |
400 |
1000 |
100 |
92 |
48 |
103 |
|
HT5050 |
500 |
500 |
100 |
78 |
40 |
59 |
|
HT5075 |
500 |
750 |
100 |
15 |
80 |
87 |
|
HT50100 |
500 |
1000 |
100 |
15 |
80 |
116 |
|
HT50125 |
500 |
1250 |
100 |
15 |
80 |
145 |
|
HT6060 |
600 |
600 |
100 |
78 |
40 |
87.8 |
|
HT6090 |
600 |
900 |
100 |
15 |
80 |
116.4 |
Product detail pictures:
