100% Original Horizontal Machining Center - CNC Wire EDM Machine DK7740 DK7745 – Hoton Detail:

Product Description:

●High precision: imported high rigidity and high strength guide rail, double nut ball screw and machine tool are adopted, and the manufacturing process parameters are 3 ~ 5 times higher than the national standard.
●High finish: it adopts a variety of wire cutting methods and automatic wire tightening device, which can realize multiple cutting and fast wire walking machine for middle wire walking.
●Speed: DK series high-speed and high-precision power supply and new environmental protection cutting fluid independently developed by Datong railway are adopted, the processing efficiency is 2 ~ 3 times higher than that of ordinary medium wire walking, and the cutting speed can reach 400mm2 / min.

Type

Worktable size
(mm)

Worktable Travel
(mm)

Max.cut thickness
(mm)

Taper
(optinal)

Max. Load
 weight
(kg)

Net weight
(kg)

Dimensions
(mm)

Power supply
(kw)

DK7740

410x710

400x500

400

6-60°/80mm

450

1600

1830X1490X1700

2KW

DK7745

500x750

450x550

400

6-60°/80mm

450

1650

1865X1520X1700

2KW


Product detail pictures:

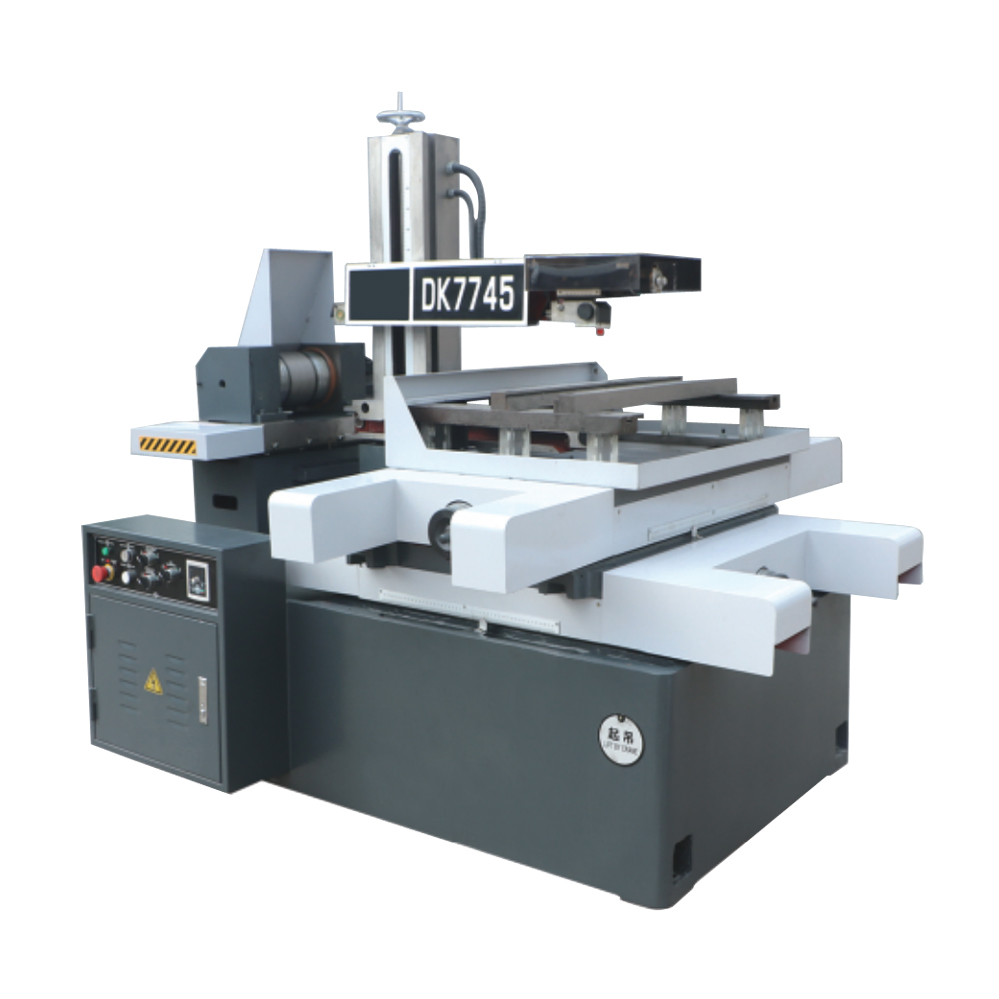

100% Original Horizontal Machining Center -
 CNC Wire EDM Machine DK7740 DK7745 – Hoton detail pictures

100% Original Horizontal Machining Center -
 CNC Wire EDM Machine DK7740 DK7745 – Hoton detail pictures
